Engineered by SUNFLEX in Germany, this innovative range of non-thermally broken slide and turn doors is ideal for creating versatile room divisions and contemporary, useable areas of space.
The first opening panel acts as a single access point, and each individual panel then slides independently back across to the same side to stack. This allows you to have as much or as little of the glass wall open at any one time. The system can open to the inside or outside and stack to the left or the right, or split to stack on both sides.
These slide and turn doors are precision engineered by SUNFLEX in Germany, who have been supplying doors worldwide for over 35 years. For more than 25 years, IDSystems has been the largest supplier of SUNFLEX systems in the UK.
The SF25 and SF30 are frameless systems, whilst the SF35 benefits from slender 40mm frame depths that minimise the stacking area required when the doors are fully opened up.
The doors are available in clear glass, or obscured glass if you require a visible barrier.
Flush recessed track as standard for a continuous floor level. The single in-line running track allows for a wide range of applications, with the glass panels sliding from 90° to any angle change up to 180°, including segmented curved-radius openings.
Choose the ideal colour match for your home with frames available in any RAL colour as standard.

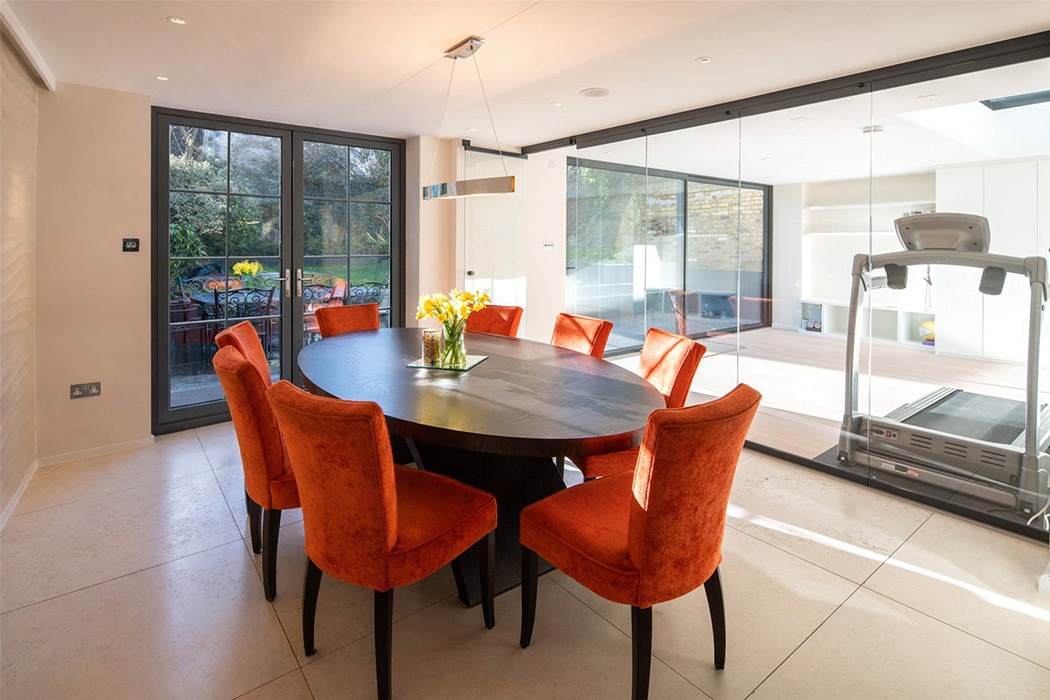

The SUNFLEX SF25 is a frameless, top-running slide & turn system that offers clear unobstructed panoramic views.
The SUNFLEX SF30 is a frameless, bottom-running slide and turn system offers clear, unobstructed views.
The SUNFLEX SF35 is a framed (with single or double glazed) top-running slide and turn system.
Frameless systems provide uninterrupted views and maximum light transmittance, whilst framed doors provide better acoustic performance
Frameless – Option of vertical seals in clear plastic
Frameless - Option of vertical seals in clear plastic
Framed – 40mm slim sightline, panels interlock for tight seal
Single glazed
Single glazed
Single or double glazed
Single glazed, heat soaked toughened. Clear or satinated
Single glazed, heat soaked toughened. Clear or satinated
Single or double glazed, toughened. Clear or satinated
Maximum widths (and heights) are governed by the weight of the glass.
The maximum panel widths shown are based on heights of 2400mm (SF25 & SF35) and 2000mm (SF30)
800mm
1000mm
800mm
Maximum heights (and widths) are governed by the weight of the glass.
The maximum panel heights shown are based on widths of 500mm (SF25, SF30 & SF35)
2800mm
3000mm
2800mm
Top running systems hang from the head track, with bottom running systems the running gear is located in the base of the track.
Top running
Bottom running
Top running
Flush with wings or square to allow for difference in floor heights
Recessed track with slight upstand, including adjustable profile
Flush with wings or square edged track to allow for difference in floor heights
The sightline is the width of the visible frame between the glass in each panel.
n/a
n/a
53mm
Acoustic performance measures the amount of sound reduction the doors are able to achieve
up to 11dB reduction
up to 11dB reduction
up to 32dB reduction
All RAL colours in semi-gloss powder-coated finish
All RAL colours in semi-gloss powder-coated finish
All RAL colours in semi-gloss powder-coated finish
All RAL colours and powder-coated finishes or anodised silver
All RAL colours and powder-coated finishes or anodised silver
All RAL colours and powder-coated finishes or anodised silver
All of the SUNFLEX slide & turn doors are non-thermally broken and as such do not meet Building Regulations requirements for thermal performance for domestic properties. Their primary uses are as internal room dividers for domestic homes or to surround patios and terraces in gardens or in commercial premises such as bars and restaurants.
Can be used for a wide range of options, including as an internal room divider, to protect outdoor kitchens, to enclose balconies surround or even as a terrace surround for restaurants/bars
Can be used for a wide range of options, including as an internal room divider, to protect outdoor kitchens, to enclose balconies surround or even as a terrace surround for restaurants/bars
Can be used for a wide range of options, including as an internal room divider, to protect outdoor kitchens, to enclose balconies surround or even as a terrace surround for restaurants/bars
Please send us your details, along with measurements for the opening, and we'll get back to you with a quote.
